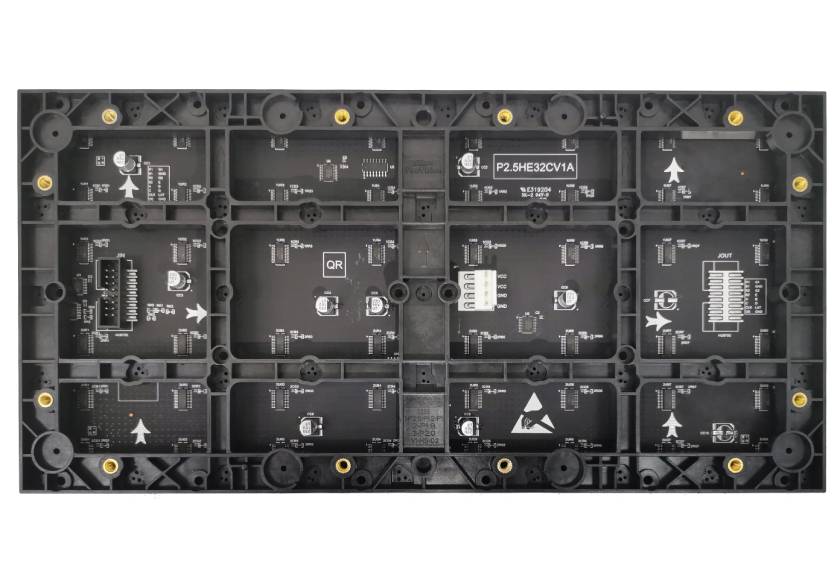

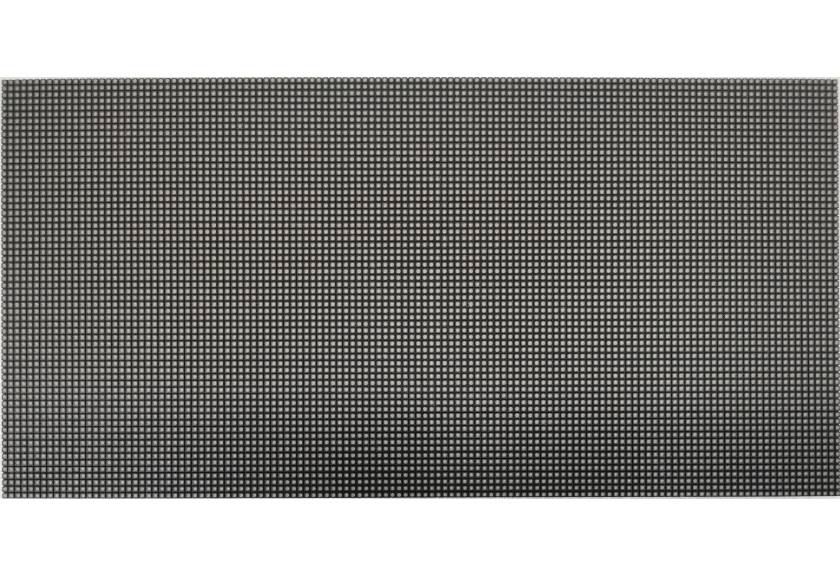

Flare IFS-FIA2.5S-C
Indoor Full-color LED Display
Unique Features
- The refresh rate can reach more than 3840Hz, the gray scale is 12-14 bit, the display picture is fine and true, the brightness is stable and uniform, there is no flicker and graininess.
- Exploits precise current regulation technology, with both channel-to-channel error and chip-to-chip error less than ±2.0%.
- Enhancement: Non-uniformity at low gray scale, Color shift, low gray mosaics.
- Elimination high contrast coupling an color-cast between modules.
- It is to adopt red, green and blue SMD2020 LED chips, nice conformity, contrast ratio can be up to 3000:1, visual angle can be up to above 120°, high reliability, long lifespan.
Technical Specifications
Model
IFS-FIA2.5S-C
Pixel Composition
SMD2020
Pixel Pitch（mm）
2.5
Module Resolution（W×H）
128×64=8192
Module Size（mm）
320×160
Module Weight（kg）
0.187± 0.01kg
Module Input Voltage（V）
4.5-5.0（Support 5V）
The Max Current for Module（A）
≤6.5
The Max Power Consumption for Module（W）
≤32.5（DC 5V）
White Balance Brightness (nits）
550
Visual Angle (Horizontal/Vertical)
120°/120°
Brightness / Colorful Evenness
≥95%
Contrast Ratio
3000:1
Frequency（Hz）
≥50/60
Driving Method
Constant Current, 1/32 Scanning
Refresh Ratio（Hz）
3840Hz
Color Processor
12-14bit
Lifespan（hrs）
100,000H
Work/Humidity temperature（℃/RH）
-10℃–50℃ / 10%-90%RH（no condensation）
Storage Temperature/Humidity （℃/RH）
-10℃–60℃ / 10%-90%RH（no condensation）
