Fusion DHI-PHRIA2.97-RE
General Indoor Rental LED
Unique Features
- 500x500mm and 500x1000mm cabinet size design, flexibly adapt to multiple scenarios.
- The module supports front and rear maintenance, more convenient operation.
- Quick lock design, Special buckles structural connection between the cabinets,Radians support -10 °~ +10 °.
- Support the interconnection of different forms of cabinets and 90 ° splicing.
Technical Specifications
Model
DHI-PHRIA2.97-RE
Pixel Pitch
2.976mm
Pixel Type
1R1G1B
Pixel Configuration
SMD2020
Brightness(Max)
1000 nit
Color Temperature
6500K-9300K （ adjustable）
Viewing Angle
H160°/V140°
Pixel Density
112,896 dots/m²
Module Size
W250mmxH250mm
Module Resolution
84×84 dots

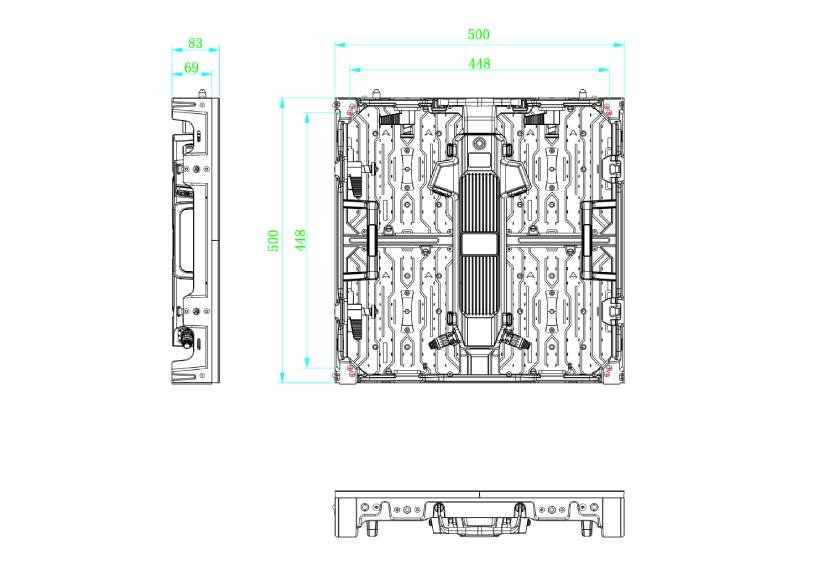

Cabinet Size
W500xH500xD83mm
Cabinet Resolution
168×168 dots
Cabinet Weight
8kg ± 0.5kg
Cabinet Material
Die-cast aluminum
Cabinet Aspect Ratio
1:1
IP Rating Front
Front IP20/Rear IP20
Operating Temperature/Humidity
-10℃~+40℃/10%~80%RH
Storage Temperature/Humidity
-20℃~+60℃/10%~85%RH
Gray Scale
14 bits
Contrast Ratio
5000:1
Refresh Rate
3840 Hz
Input power frequency
50/60 Hz
Input Voltage
AC110~220V (+/-10%)
Input Power (Max)
500 W/㎡
Input Power (Avg)
180 W/㎡
Installation Mode
Floor Mounted/Hanging
Maintenance Mode
Front & Rear maintenance
Signal Transmission Distance
CAT5 Cable ( L≤100m ),
multi-mode fiber (L≤300m ),
single mode fiber (L≤10km)
