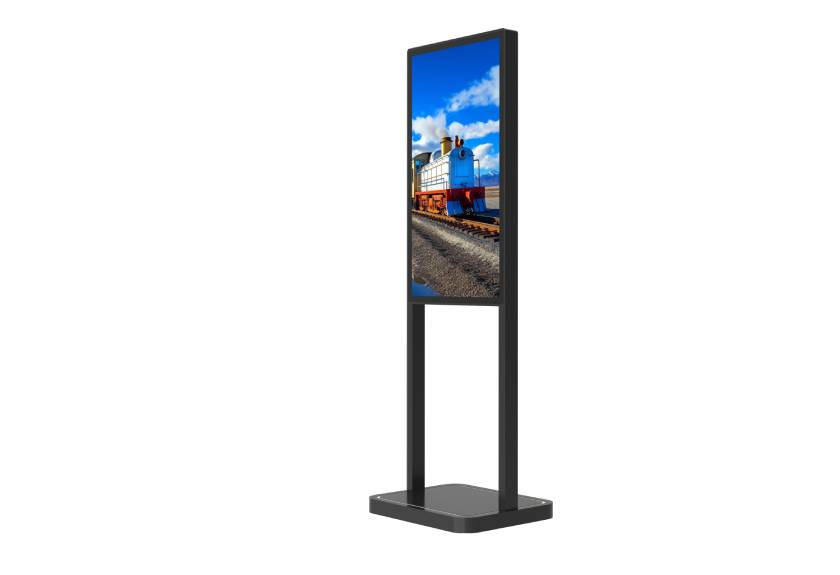

Photon DHI-LDV55-PAI400L
Dahua 55 inch Vertical LCD Digital Signage
Unique Features
- Designed with an industrial-grade panel. It works up to 24 hours a day.
- Includes a mainstream quad-core CPU, Android system, and decodes up to 4K resolution.
- Plays and releases programs in multiple modes.
- With intelligent split screen, its page layout can be freely adjusted, making it suitable for a variety of scenes.
- Designed with B/S architecture, the device manages programs by time and location, and generates operation reports.
- The device offers unified platform management, and can be remotely controlled by the platform.
Technical Specifications
Model
DHI-LDV55-PAI400L
Panel Dimensions
55 inch
Backlight
ELED
LCD Technology
IPS/VA
Aspect Ratio
9:16
Brightness
700 cd/m² (typ.)
Contrast
IPS 1200:1(typ.)/ VA 5000:1(typ.)
Display Colors
10 bit (8 bit + FRC), 1.07B colors
Resolution
2160 (H) × 3840 (V)
Viewing Angle
178° (H); 178° (V)
Response Time
8 ms (typ.)
Surface Treatment
Haze 1%
Operating System
Android 11.0
CPU
4 cores A55, 1.92 GHZ
RAM
4 GB
ROM
32 GB
Video Decoding
H.265 HEVC MP-10@L5.1 up to 2160p@60 fps
H.264 AVC HP@L5.1 up to 2160p@30 fps
VP9 Profile 2 up to 2160p@60 fps
H.264 MVC up to 1080p@60 fps
MPEG-4 ASP@L5 up to 1080p@60 fps (ISO-13818)
WMV/VC-1 SP/MP/AP up to 1080p@60 fps
Built-in Speaker
2 × 5 W
Audio Compression
MPEG-3,WMA,WAV
Video Compression
MPEG-4, H.264 AVC/MVC, H.265 HEVC
Video Format
mp4, avi, mov, mkv, wmv
Network Port
1 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet port
Wi-Fi
Optional (External Wi-Fi module)
Bluetooth
NO
Data Transmission Ports
1 × USB 2.0 ports (type A)
1 × USB 3.0 ports (type A)
1 × TF card slot, up to 128 GB
Video Input
1 × HDMI 2.1 (4K @60Hz)
Video Output
NO
Audio Port
1 × 3.5 mm jack output
IR Receiver
Yes
Certifications
CE EMC, CE LVD, CE ERP
Power Supply
100–240 VAC, 50/60 Hz
Power Consumption
≤ 200W
Standby Power Consumption
≤0.5 W
Operating Temperature
0 °C to +40 °C (+32 °F to +104 °F) (avoid direct sunlight)
Storage Temperature
-20 °C to +60 °C (-4 °F to +140 °F)
Operating Humidity
10%–85% (RH), non-condensing
Storage Humidity
10%-90% (RH), non-condensing
Product Material
Metal casing
Casing Color (Frame/Rear)
Black
Product Dimensions
1900mm x 775mm x 460 mm
(74.8″ × 30.51″ × 18.11″)
Packaging Dimensions
2030 mm x 220 mm x 915 mm
(79.92″ × 8.66″ × 36.02″)
Net Weight
57.6 kg（126.99 Ib)
Gross Weight
63.1 kg（139.11 Ib)
Installation
Vertical mount
Display Mode
Portrait
Accessory
Base, user’s manual, power cord, legal and regulatory information, remote control
