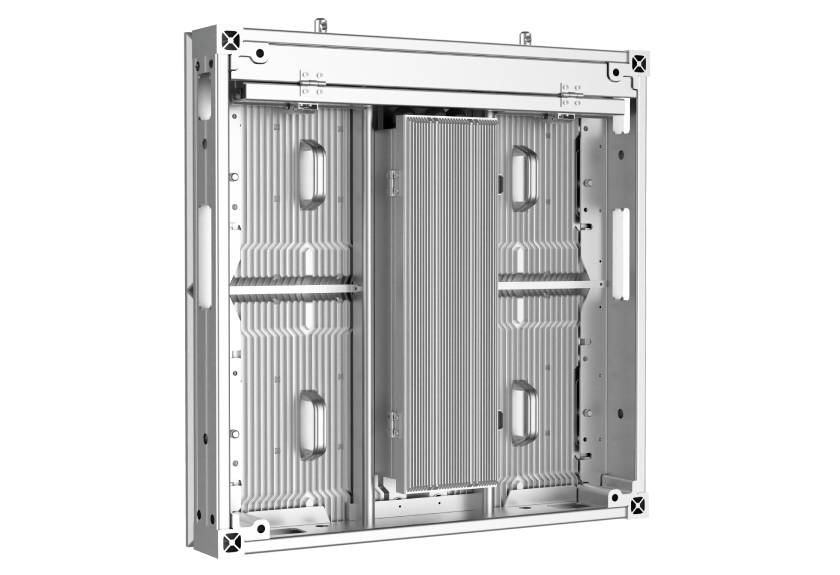

Verve DHI-PHGOA2.97-PH
General Outdoor Fixed LED
Unique Features
- Super thin and light design: 77mm and 36kg/㎡.
- Support front&rear installation and maintenance.
- Support 90° right angle splicing.
- Aluminum module chassis and panel frame accelerates heat dissipation.
- High protection grade, IP68 on front and IP66 on rear.
- Dot by dot calibration ensures color richness and brightness uniformity.
Technical Specifications
Model
DHI-PHGOA2.97-PH
Pixel Pitch
2.97mm
Pixel Configuration
1R1G1B
LED Type
SMD1515
Brightness(Max)
4500 nit
Color Temperature
3500K-10000K（adjustable)
Viewing Angle
H160° / V90°
Pixel Density
112,896 dots/m²
Module Size
250mm×250mm
Module Resolution
84×84 dots
Cabinet Size
W500mm×H500mm×D77mm
Cabinet Resolution
168×168 dots
Cabinet Weight
9.0 kg ± 0.5
Cabinet Material
Aluminum Alloy
Aspect Ratio
1:1
IP Rating
Front IP68/Rear IP66
Operating Temperature/Humidity
-40℃~+60℃/10~80%RH
Storage Temperature/Humidity
-40℃~+60℃/10~80%RH
Grayscale
14 bits
Contrast Ratio
6000:1
Refresh Rate
3840Hz
Input Voltage
AC 110~220V (+/-10%)
Input Power (max)
680 W/㎡
Input Power (Avg)
200 W/㎡
Installation Mode
Wall Mounted/Floor Mounted
Maintenance Mode
Front&Rear Maintenance
Signal Transmission Distance
CAT5 Cable ( L≤100m ),
multi-mode fiber ( L≤300m),
single mode fiber (L≤10km)
