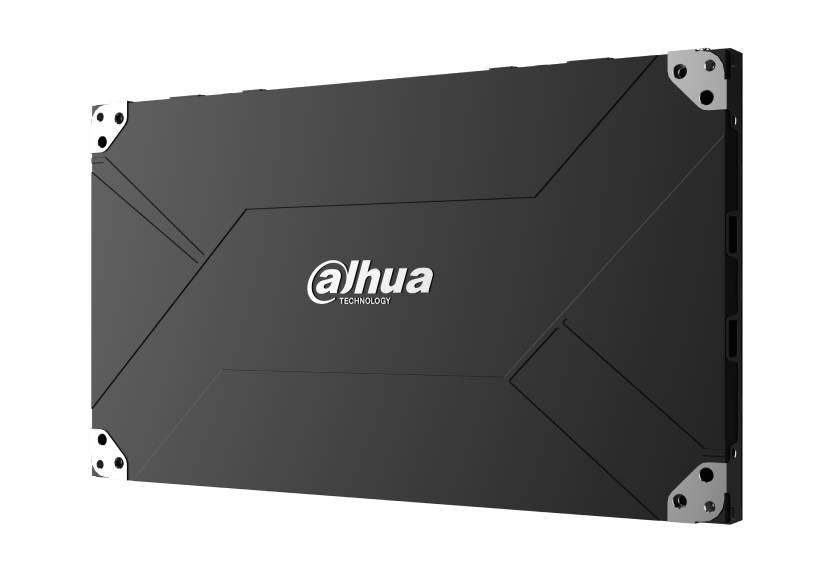

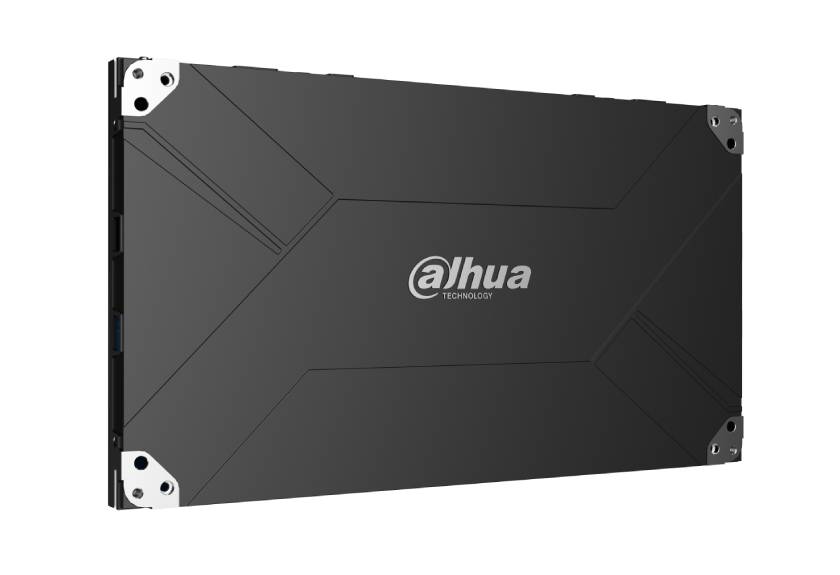

Stellar DHI-PHSIA0.9-AH
Flip COB Indoor Fine Pixel Pitch LED
Unique Features
- Mini Flip COB(Chips on Board) technology.

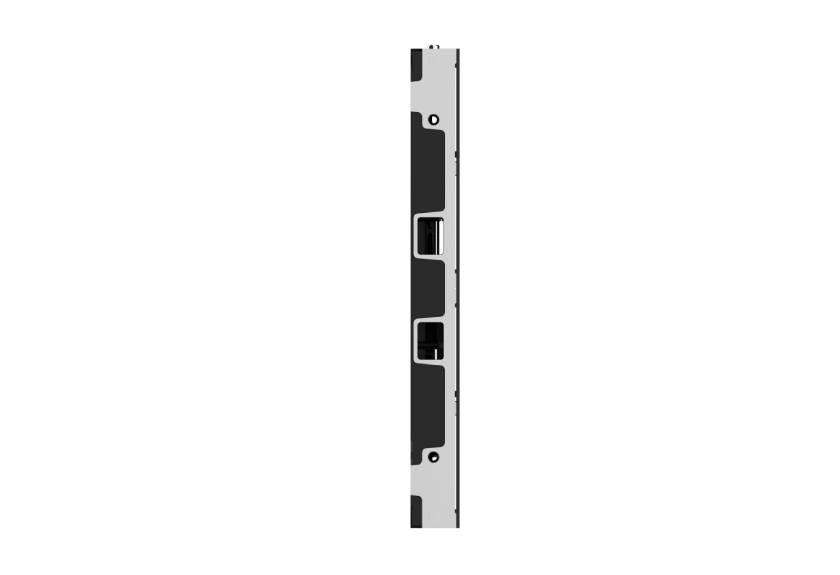

- Ultra-thin 34.25mm and super-light 4.1kg design.
- Full front maintenance lamp module that supports front maintenance, improving construction and maintenance efficiency.
- Ultra high definition, 16:9 golden ratio/4:3 ratio.
- The die-cast aluminum improves heat dissipation, extending the service life of the enclosure.
- Moisture-proof, anti-collision, waterproof and can be wiped.
- Easy to wire, the power cords can easily be connected to one another in the panels.
Technical Specifications
Model
DHI-PHSIA0.9-AH
Pixel Pitch
0.9375mm
Pixel Configuration
1R1G1B
LED Type
3-in-1 COB
Brightness (White Balance)
100-600 cd/m² (adjustable)
Max. Brightness
600 cd/m²
Brightness Control
Manual, auto
Color Temperature
9300K ± 200K (standard)
Viewing Angle
H160° / V160°
Pixel Density
1,137,777 dots/m²
Color Depth
≥13 bits
Grayscale
≥8192 levels per color
Single Pixel Brightness Correction
Yes
Single Pixel Color Correction
Yes
Brightness Uniformity
≥97%
Chroma Uniformity
≤±0.03Cx,Cy
Contrast Ratio
≥10000:1
Image Frame Rate
50/60 Hz
Image Refresh Rate
≥3840 Hz
Packaging Types for LED Lamp Beads
Flip chip, COB
Common Cathode/Common Anode
Common cathode
Connection Mode for Modules
Hard connection
Power Supply Configuration
Single power supply
Signal Configuration
Single signal
Default Control System
NovaStar
Supply Forms
Die cast aluminum cabinet
Aspect Ratio
16:9
Protection
IP30
Operating Temperature
–10 °C to +40 °C (+14 °F to +104 °F)
Operating Humidity
10%–80% (RH)
Storage Temperature
–20 °C to +60 °C (–4 °F to +140 °F)
Storage Humidity
10%–90% (RH)
Power Supply
100–240 VAC, 50/60Hz
Power Consumption
Basic: 125 W/m2; Max: 370 W/m2
Lifespan
≥100,000 hrs
Drive
Constant current, 1/54 scanning
Communication
Shielded twisted pair cable (L ≤ 100 m);
multi-mode optical fiber (L ≤ 500m);
single-mode optical fiber (L ≤ 20 km)
Module Resolution
160 (H) × 180(V)
Module Size
150 mm × 168.75 mm (5.91″ × 6.64″)
Box resolution
640 (H) × 360 (V)
Product Dimensions
600 mm × 337.5 mm (23.62″ × 13.29″ )
Box Thickness
34.3 mm(1.35″)
Packaging Dimensions
670 mm × 568 mm × 140 mm
(26.38″ × 22.36″ × 5.51″)(L × W × H)
Net Weight
6.4 kg (14.2 lb)
Gross Weight
12.6 kg (27.8 lb)
Box Area
0.2025 ㎡
Box Material
Die cast aluminum
Installation
Wall mount; floor mount
Maintenance
Front maintenance
Certifications
CE
